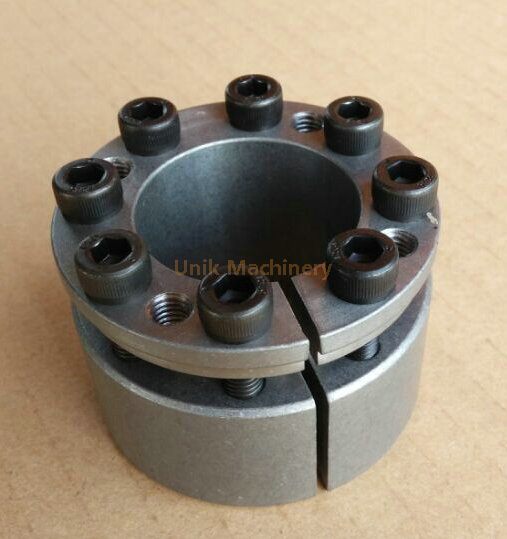

This type of shaft clamping elements are designed to give optimum concentricity, both radically and axially. The increased length provides improved support, and reduced pressures on both shaft and hub. These units must always be installed inside the hub to ensure optimum concentricity. Axial movement of hub will occur during clamping operation.
Interchange with TLK130 VK700 FX40 DRIVELOCK70 BIKON700A BK70 CCE4000 RCK70 CONEX D KTR200 KBS70 MAV6091CAL-D RFN7013.0
• Medium capacity
• Self-centering, self-locking
• Single taper design
• High contact length, low contact pressures
• Tolerances: shaft h8; hub bore H8
• Surface finish of shaft and hub bore Ra < 1.0 μm
