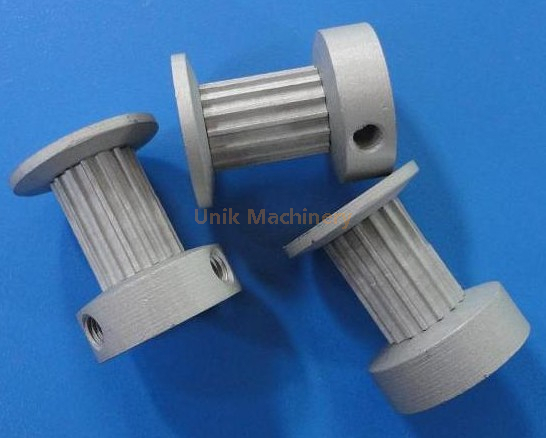

Timing Pulley MXL

MXL(0.08'') 2.032mm; MXL025 for belt width 6.35mm. The mostly produced size from 18MXL025 to 72MXL025
  • MXL

  • Unik

Quantity:

Product Description


Belt SectionPitchOuter DiameterBelt WidthTooth Depth
In each pitch trapezoidal teeth shape pulley as per ISO 5294,   pitch geometry can be as follows MXL Timing   Pulley0.080"-2.032   mm0.51   mm3,6,9,5 mm0.457 mm
XL Timing Pulley0.200"-5.080   mm0.51   mm9,5,12.5   mm1.651   mm
L Timing Pulley0.375"-9.525   mm0.75   mm12.5,19,25.4   inch2.667   mm
H Timing Pulley0.500"-12.7   mm1.37   mm1,1.5,2   inch3.048   mm
XH Timing Pulley0.875"-22.225mm2.79   mm2,3,4   inch7.137   mm
XXH Timing Pulley1.250"-31.750mm3.05   mm2,3,4,5   inch10.312   mm
