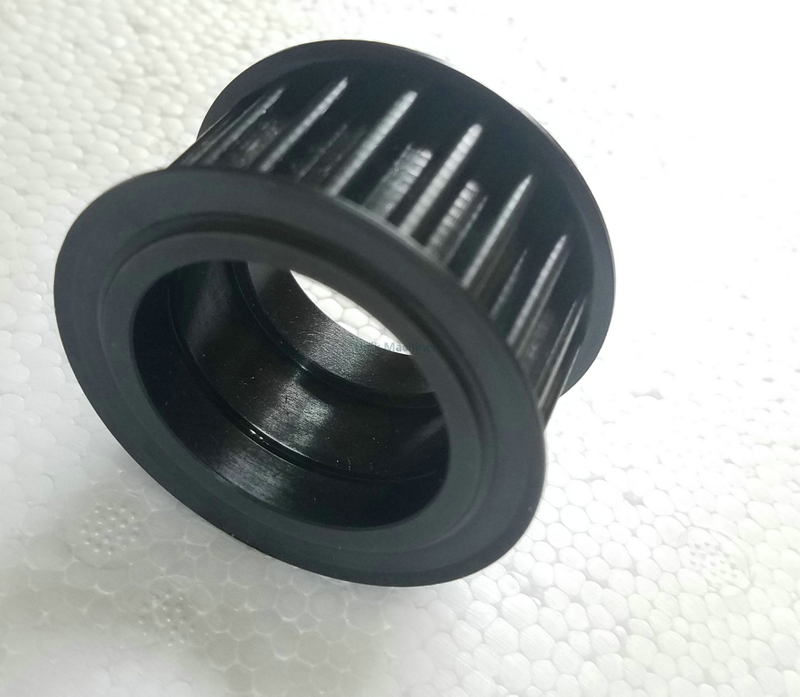

Metric Pitch Timing Pulley AT5

Metric Pitch Timing Pulley AT5mm teeth number from 12 to 60
AT5-21 for belt width 10mm;AT5-27 for belt width 16mm;
AT5-36 for belt width 25mm;
Material: Aluminum Surface treatment options: Natural or Anodizing
  • Metric Pitch AT5

  • Unik

Quantity:

Product Description


Belt SectionPitchOuter DiameterBelt WidthTooth Depth
Trapezoidal teeth shape pulley as per DIN 7721. Pitch geometry   can be as follows, with as low as zero backlash and high power transmission.T2.5 Timing   Pulley2.300 mm0.51   mm4,6,10 mm0.75 # 1.00 mm
T5 Timing Pulley6.000   mm0.85   mm6,10,16,25   mm1.25   # 1.95 mm
T10 Timing Pulley10.000   mm1.90   mm16,25,32,50   mm2.60   # 3.40 mm
T20 Timing Pulley20.000   mm2.90   mm - 3.2 mm16,25,32,50,75,100   mm5.20   # 6.30 mm
AT3 Timing Pulley3.000   mm0.42   mm6,10,16,25,32   mmN.A.
AT5 Timing Pulley5.000   mm1.20   mm10,12,25,32.50   mmN.A.
AT10 Timing Pulley10.000   mm1.85   mm10,16,25,32,50,75,100   mmN.A.
AT20 Timing Pulley20.000   mm2.90   mm - 3.2 mm16,25,32,50,75,100   mmN.A.
