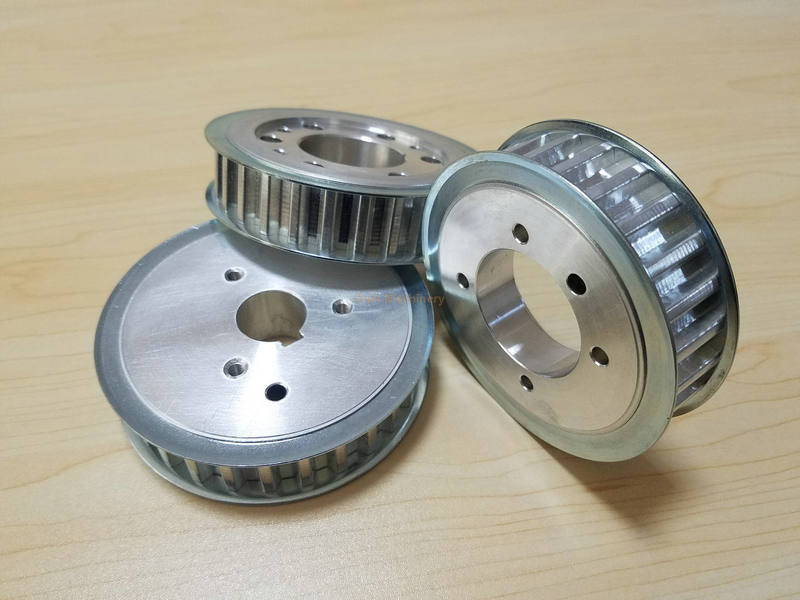

Metric Pitch Timing Pulley T10

Metric Pitch Timing Pulley T10mm teeth number from 12 to 60
T10-31 for belt width16mm;T10-40 for belt width 25mm;
T10-47 for belt width 32mm; T10-66 for belt width 50mm
Material: Aluminum Surface treatment options: Natural or Anodizing

  • Metric Pitch T10
  • Unik
Quantity:

Product Description


Belt SectionPitchOuter DiameterBelt WidthTooth Depth
Trapezoidal teeth shape pulley as per DIN 7721. Pitch geometry   can be as follows, with as low as zero backlash and high power transmission.T2.5 Timing   Pulley2.300 mm0.51   mm4,6,10 mm0.75 # 1.00 mm
T5 Timing Pulley6.000   mm0.85   mm6,10,16,25   mm1.25   # 1.95 mm
T10 Timing Pulley10.000   mm1.90   mm16,25,32,50   mm2.60   # 3.40 mm
T20 Timing Pulley20.000   mm2.90   mm - 3.2 mm16,25,32,50,75,100   mm5.20   # 6.30 mm
AT3 Timing Pulley3.000   mm0.42   mm6,10,16,25,32   mmN.A.
AT5 Timing Pulley5.000   mm1.20   mm10,12,25,32.50   mmN.A.
AT10 Timing Pulley10.000   mm1.85   mm10,16,25,32,50,75,100   mmN.A.
AT20 Timing Pulley20.000   mm2.90   mm - 3.2 mm16,25,32,50,75,100   mmN.A.
